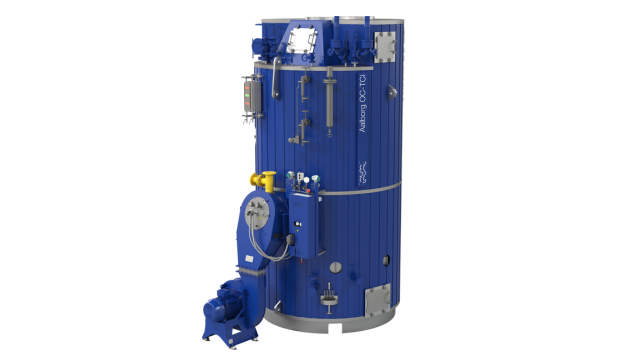

Aalborg OC-TCI

Aalborg OC-TCi is intended for steam production. The high-performance Aalborg OC-TCi is a space saving combination boiler fired with both oil and exhaust gas.

Aalborg OC-TCi立式锅炉-Aalborg OC-TCi vertical boiler

Aalborg OC-TCi is intended for steam production, the high-performance Aalborg OC-TCi (formerly MISSION OC-TCi) is a space saving combination boiler fired with both oil and exhaust gas. Preassembled and installed vertically, it consists of an oil-fired module with helix tubes and an exhaust gas fired module with smoke tubes.

The boiler provides effective self-cleaning, thanks to its built-in TCi (Turbo Clean, intelligent) technology and its relatively high gas velocity compared to other composite boilers. Controlled via an Aalborg Control Touch (formerly MISSION Control Touch) system, it can be fitted with a compact silencer to suit any type of diesel engine.

Features and benefits of the Aalborg OC-TCi product

  • Vertical smoke/water tube type
  • Standard preassembled boiler unit
  • Integrated control panel
  • Quick and easy installation
  • Designed for operation with a monobloc-type pressure jet or rotary cup burner

Come funziona:

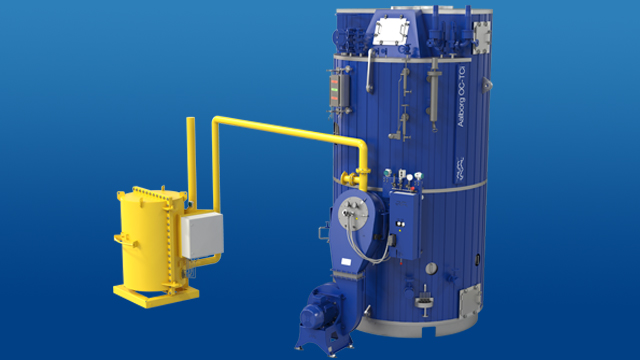

Preassembled and installed vertically, the Aalborg OC-TCi consists of a fired module with helix tubes and an exhaust gas module with smoke tubes. In the Aalborg OC-TCi Multiple Inlet version, the latter module is suitable for use with one main engine and two auxiliary engines. The boiler provides effective self-cleaning, thanks to its built-in TCi (Turbo Clean, intelligent) technology and its relatively high exhaust gas velocity compared to other composite boilers. It can also be fitted with a compact silencer to suit any type of diesel engine.



Steam and hot water production

  • Design pressure: 9 bar(g)
  • Capacity, fired section: 750–8000 kg/h
  • Capacity, exhaust gas section: 180–5000 kg/h
  • Burner recommendation: Alfa Laval Aalborg KBM pressure-atomizing burner

Typical vessel types

  • Container vessels
  • Bulk carriers
  • LNG/LPG tankers
  • Chemical/oil product tankers
